This article shares how to replace the thermostat of a vertical wall mounting machine.

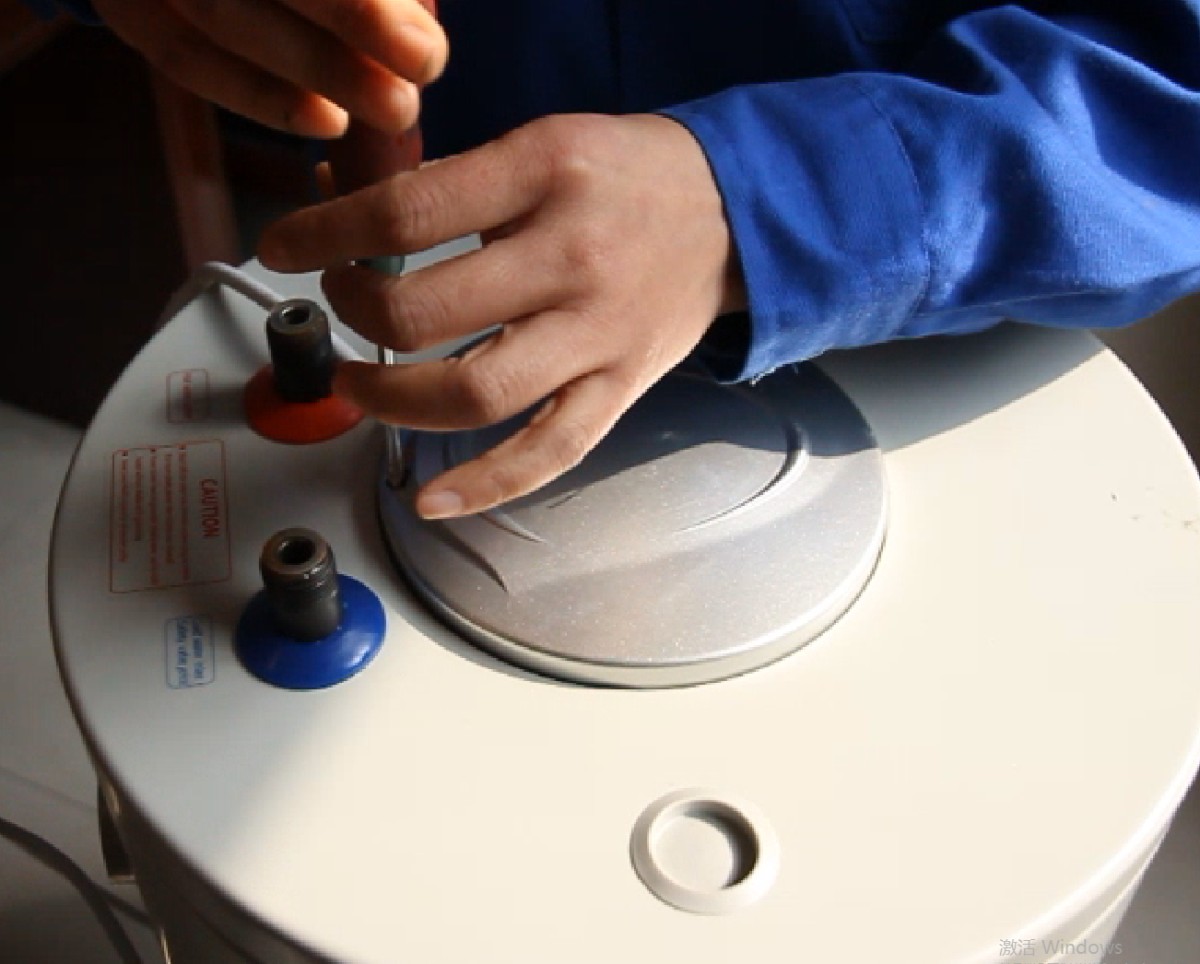

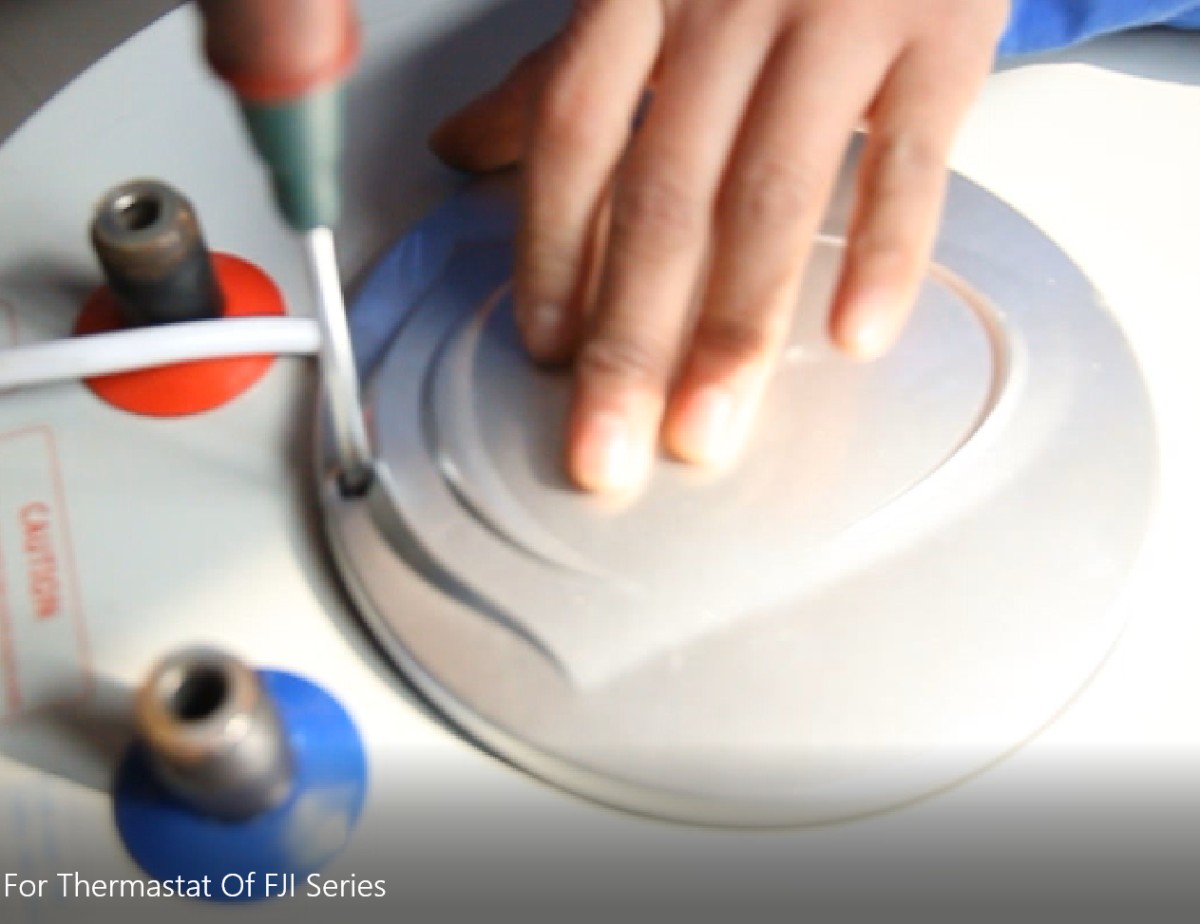

1. Loosen the screw of the maintenance cover at the bottom of the machine and remove the maintenance cover.

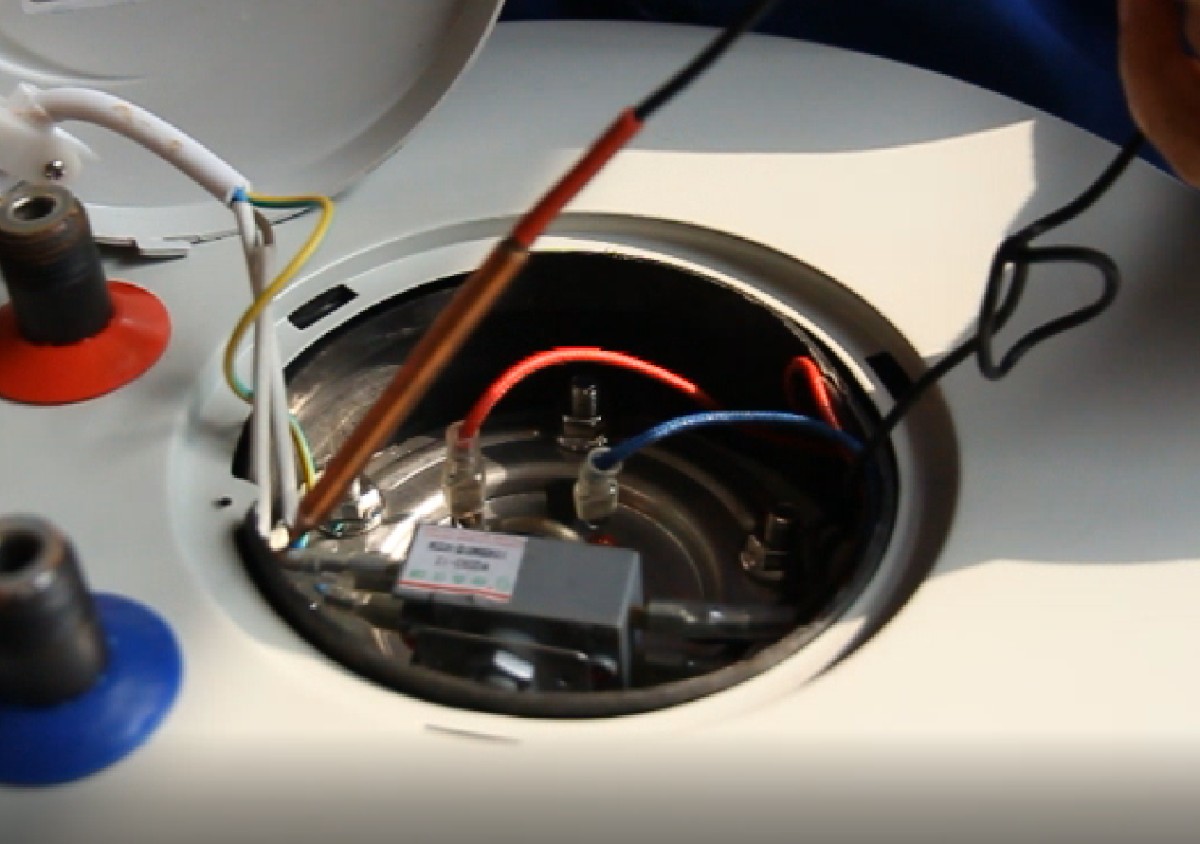

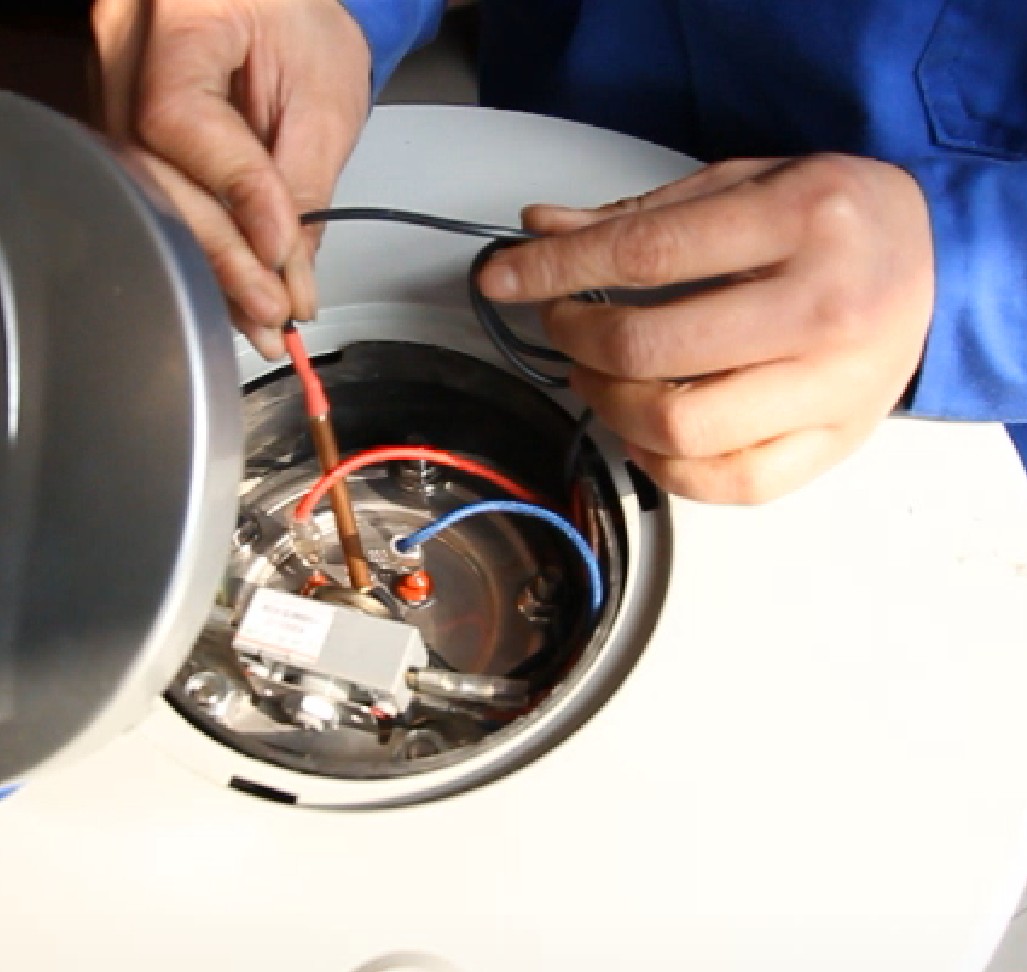

2. Pull out the thermostat probe tube in the blind pipe of the heating tube.

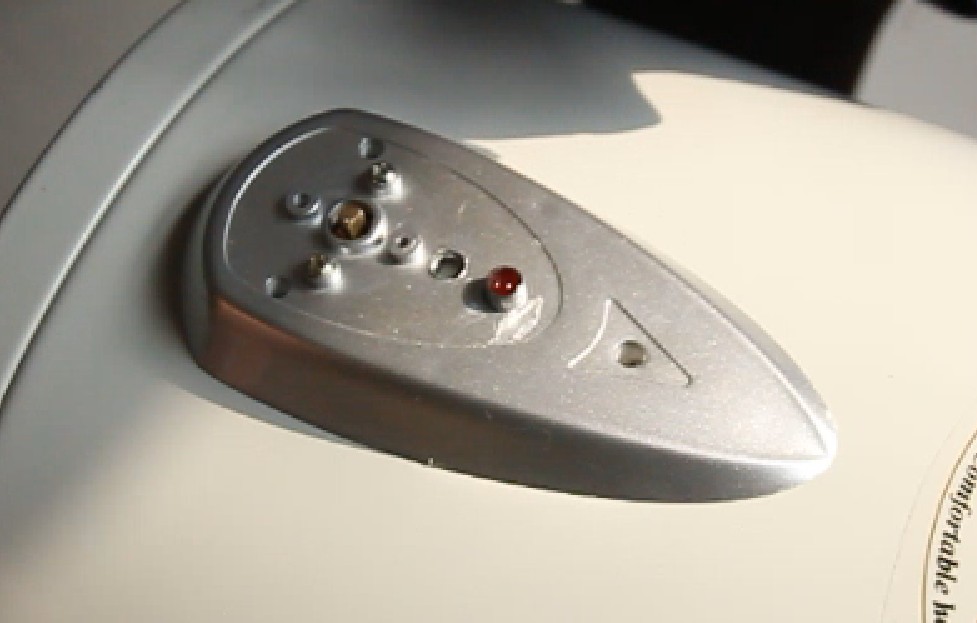

3. Put the machine upside down, remove the control knob connected to the thermostat,peel off the sticker, and loosen the fixing screws between the thermostat and the control panel cover to separate apart.

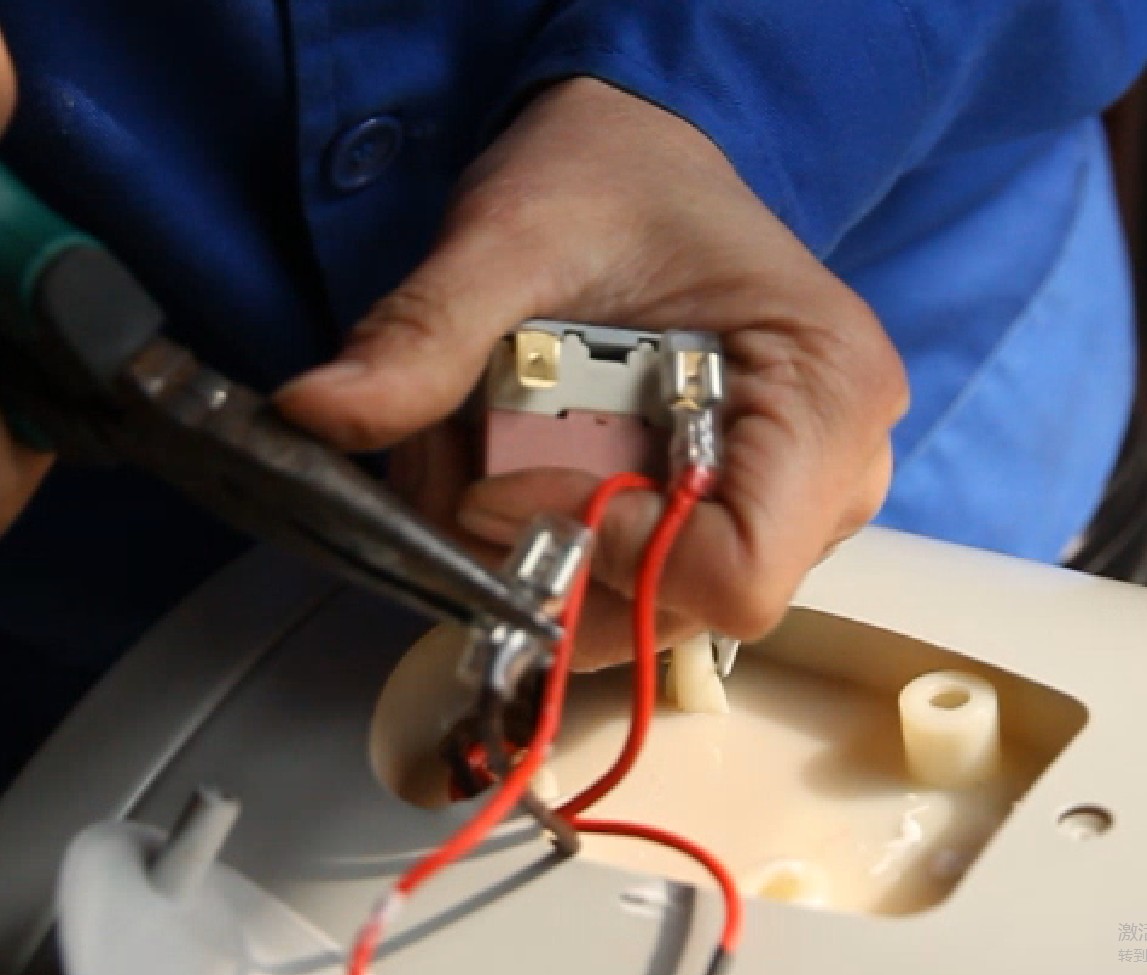

4. Use needle-nose pliers to pull out the terminals connecting the two terminal blocks of the thermostat inside the control panel, and remove the thermostat from the internal space of the end cover.

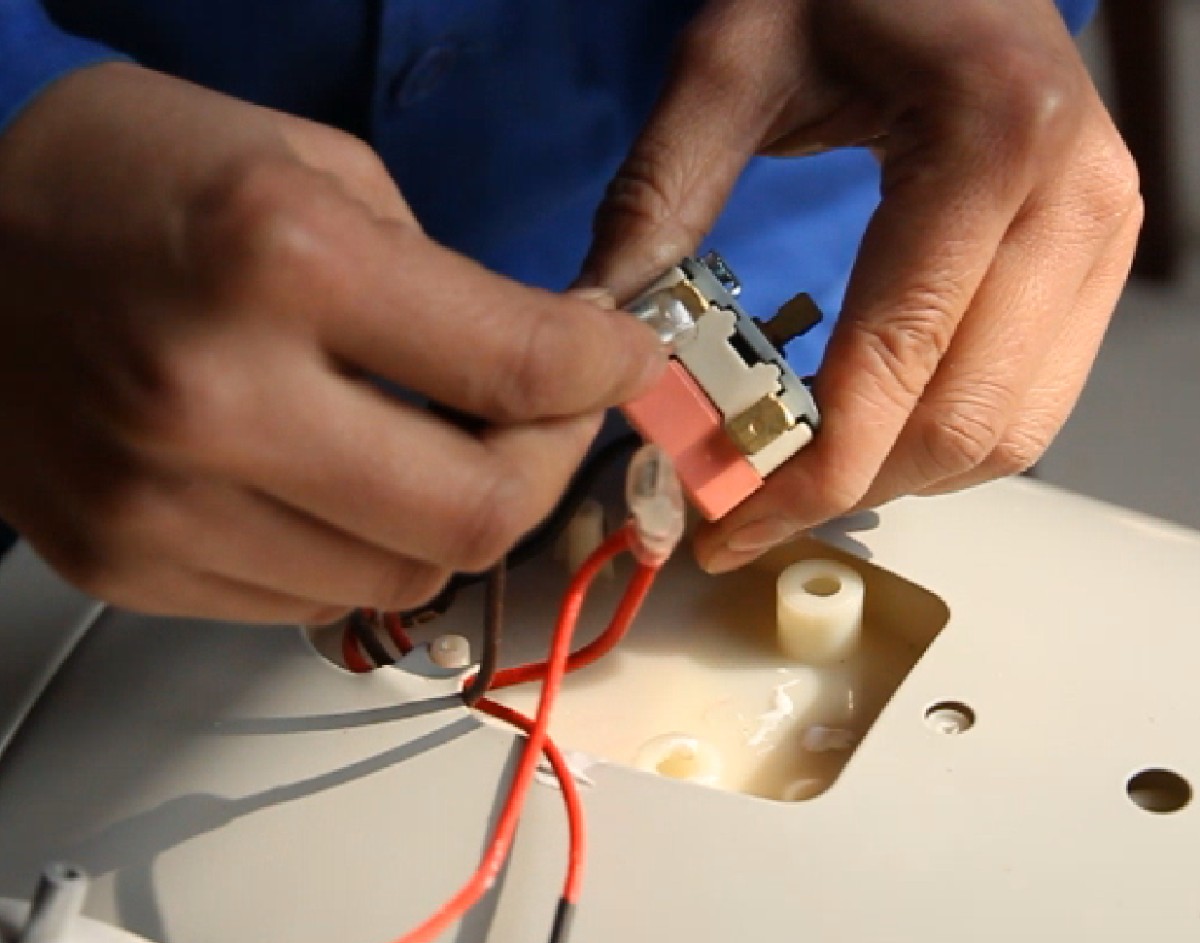

5. Replace with a new thermostat, connect to the two terminal blocks of the thermostat, and tighten the fixing screws between the thermostat and the control panel cover, and recover sticker marking on the top. Furthermore,the temperature control knob should be fixed on the thermostat rod again.
6. Reinsert the temperature probe of the thermostat into the blind pipe of the heating pipe, and plug the blind pipe with a rubber seal to prevent the relative movement of the probe.
7. Install the maintenance cover, tighten the screws, and the installation is complete
